Office/ENP WiFi

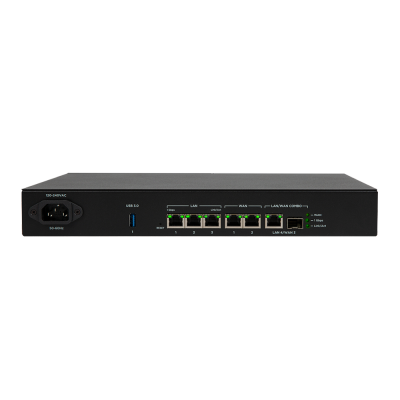

VPN3000

Enterprise VPN Router

  • MT7621A Dual Core processor
  • 512MB D-RAM
  • 1G SFP Combo Wan Port
  • USB 3.0 Port
  • 15KV Surge Protection
  • 2 WAN Ports
  • 3 LAN Ports

Enterprise class VPN Router

The VPN3000 is a powerful VPN router designed for the Enterprise office.  Featuring a dual core CPU with 880Mhz clock speed, it is fast enough for all office applications.  Featuring an unique Fiber optic WAN port, you can connect fiber to the building directly.  The router features 15KV surge protector which double the protection compare to average router.  USB port allowing 4G backup, printer sharing, or storage sharing.

Working from Home

The VPN3000 is a perfect solution for working from home.  Featuring Open VPN Server/Client, you can install the router on both side of Office and home.  Then your worker can work from home instantly.  You can also only install the VPN router on the company’s side.  The workers can work from home by downloading the Open VPN client software or using PPTP dial-up service.

Site to Site VPN

If you need to connect branch offices to the head office, you can use the IPsec VPN feature on the VPN3000.  The VPN3000 support more than 30 IPsec tunnels, it is enough for a medium size companies to make all the necessary connections.
HARDWARE
CPU
MT7621A Dual Core MIPS 1004K 880MHz
Memory
64MB SPI Flash+ 512MB DDR3
Interface
2 x 10/100/1000Mbps WAN Ports
3 x 10/100/1000Mbps LAN Ports
1 x Gigabit SFP WAN Port
Button
Reset button
LED Indicator
Power LED, LAN1, 2, 3 LEDs, WAN1/WAN2 LEDs
Power
Power
Power Saving
802.3az
Mounting
Desk Mount
ESD Surge
15KV Air Surge Protection
Housing
UL94-5VB Flammability Rating
Dimension
13" x 1.73" x 9.05"
SOFTWARE
LAN to LAN Performance
1000Mbps
WAN-to-WAN performance
600Mbps
IPsec Performance
100Mbps
OpenVPN
Server/Client, Up to 20 clients
PPTP
Server/Client
IPsec
Site to Site
MANAGEMENT
Deployment
Standalone AP Mode
Configuration
HTTP / HTTPS
SNMP v1, v2c, v3
OTHERS
Certification
FCC
Environmental Condition
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
