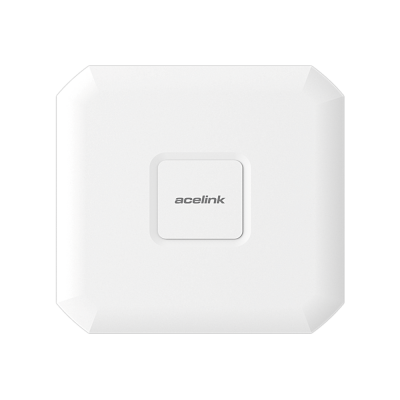

EW-7889HAP
AX7200 High Density AP (coming soon)
- 11AX 8T8R WiFi Radio
- Up to 7200Mbps WiFi 6 performance
- 4 x Qualcomm IPQ8070A Chipset
- 16 Cores A53 CPU
- 1-port 802.3bt 10Gigabit PoE In
- 8 sector antenna array
- 1000 WiFi-6 users or 512 WiFi-5 users
- Built-in NMS and Radius Server
- Ceiling Mount and Wall Design
WiFi 6
Built for High Density Environment
How many times in public areas where you can connect with a WiFi network with strong signal but not able to surf the net? That is because the traditional WiFi network employs CSMA/CA architecture collision based architecture that limits the number of simultaneous users. The EW-7889HAP is the answer for high density environment such as conference room, airport, train station, and sports arena.Up to 1000 Users
With the latest wireless 802.11ax technology, it shows improvements in the speed, reliability and quality of wireless communications. 16 cores powerful CPU and 16 radios enable the device to have maximum of 1000 WiFi-6 users or 512 WiFi-5 users.Long Range Sector antennas
The EW-7889HAP uses 8 dual band sector antennas to avoid self interference and extend the coverage. That means you need to deploy less APs to save deployment cost.HARDWARE
- CPU
- 4 x Qualcomm IPQ8070. Quadcore Arm A53 @ 2GHz
- RF
- 4 x Qualcomm QCN5024+ 4x QCN5054
- Memory
- 256MB Nor Flash+ 512MB Nand Flash + 4GB DRAM
- FEM&PA
- 5G: SKY85750-11
2.4G: SKY85334-11
- Interface
- 1 x RJ45 10/100/1000/10000Mbps 802.3at PoE Port
- Button
- Reset button
- LED Indicator
- Power LED, Diag LED
- Antenna
- Type: 8 x Built-In Sector (8 dual-band antenna)
- Power
- 802.3bt PoE
- Power Saving
- 802.3az
- Mounting
- Ceiling and Wall Mount
- Housing
- UL94-5VB Flammability Rating
- Dimension
- 350(W) x 350(D) x 6 (H) mm
WIRELESS
- Standard
- 802.11 a/b/g/n/ac/ax Concurrent Dual-Band
- Frequency Band
- Radio Ⅰ: 802.11b/g/n/ax 2.412~2.484(GHz)
Radio Ⅱ: 802.11a/n/ac/ax 5.15~5.25(GHz), 5.25~5.35(GHz), 5.470~5.725(GHz)
(The supported frequency band is restricted by local regulations.)
- Maximum Data Speed
- 2.4GHz: 2400Mbps, 5GHz: 4800Mbps
- Operation Channels
- 2.4GHz :
US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
5GHz : Country dependent for the following ranges:
US/Canada:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe:
Band 1: 36, 40, 44, 48; 5.180~5.240(GHz)
- Maximum Transmit Power
- 802.11b
17dBm@1Mbps, 17dBm@11Mbps
802.11g
17dBm@6Mbps, 15dBm@54Mbps
802.11n (2.4G)
17dBm@MCS0(HT20), 15dBm@MCS7(HT20), 12dBm@MCS9(HT40)
802.11ax (2.4G)
9dBm@MCS11 (HT40), 15dBm@MCS4/12, 15dBm@MCS5/13
14dBm@MCS6/14, 14dBm@MCS7/15
802.11a
17dBm@6Mbps, 16dBm@54Mbps
802.11n(5G)
17dBm@MCS0 (HT20), 15dBm@MCS7 (HT20)
802.11ac
17dBm@MCS0 (VHT80), 15dBm@MCS7 (VHT80), 14dBm@MCS9 (VHT80)
802.11ax (5G)
10dBm@MCS11 (HT80)
(CE: 20dBm or lower, FCC: 23dBm or lower)
- Receiver Sensitivity
- 802.11b : ≤-88dBm@1Mbps , ≤-86dBm@11Mbps
802.11g : ≤-88dBm@6Mbps , ≤-71dBm@54Mbps
802.11gn (2.4G) : ≤-88dBm@MCS0 , ≤-68dBm@MCS7m , ≤-60dBm@MCS9
802.11ax (2.4G) : ≤-53dBm@MCS11
802.11a: ≤-87dBm@6Mbp , ≤-68dBm@54Mbps
802.11n(5G) : ≤-87dBm@MCS0 , ≤-68dBm@MCS7
802.11ac : ≤ -56dBm@MCS9
802.11a (5G) : ≤ -50dBm@MCS11
- Concurrent Clients
- Up to 1000 OFDMA(WiFi-6) users or Up to 512 CSMA/CA(WiFi-5) users
- No. of SSIDs
- 16 (2.4GHz) + 16 (5GHz)
- 802.11 r/k Fast Roaming
- Yes
- Band Steering
- Yes
- AirTime Fariness
- Yes
- Beamforming
- Yes
SOFTWARE
- Wireless Mode
- AP
- 802.1q VLAN
- Y (VID = 1-4095)
- Spanning Tree
- RSTP
- QoS
- WMM (802.11e)
Max associated station number
- Pass-Through
- IPv6 and VPN (PPTP, L2TP/IPsec)
- DSCP (802.1p)
- Yes
- Multicast Rate up to 54Mbps
- Yes
SECURITY
- Encryption
- WEP / WPA2-AES / WPA3
- Wireless L2 Isolation
- Yes
- Station Isolation
- Yes
- IEEE 802.1x Authenticator
- Yes
- EAP Authentication
- PEAP
- Hidden SSID
- Yes
- MAC Address Filter
- Yes
- Wireless STA
- Yes
- Rogue AP Detection (w/ NMS)
- Yes
MANAGEMENT
- Deployment
- Standalone AP Mode
- Configuration
- HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
- RADIUS Server
- Built-In
- Auto-Channel
- Yes
- Private MIB
- Yes
OTHERS
- Certification
- CE, FCC
- Environmental Condition
- Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 90% or Less
