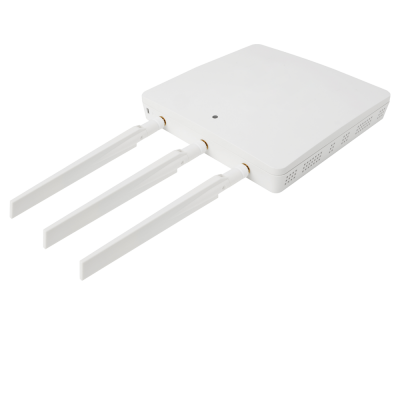

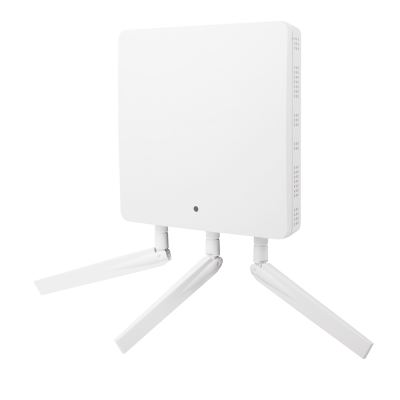

EW-7679WAC

AC1750 3T3R High Power Wall Mount PoE AP

  • 3T3R Concurrent Dual Band
  • Up to 1750Mbps
  • QCA9558+QCA9880 Solution
  • 2 Gigabit Ports with PoE output port
  • Built-in NMS and Radius Server
  • Wall Mount Design
Inquiry

The EW-7679WAC is a highly-reliable industrial wall-mount wireless access point designed to extend wireless network coverage for enterprise users. With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7679WAC provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. Three detachable high gain antennas with 27.5dBm maximum power transmission provide larger wireless coverage for your environment. The solid capacitors used in the EW-7679WAC guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices. Additionally, the EW-7679WAC features two gigabit LAN ports. One is for 802.3at Power over Ethernet and another one is 802.3af PSE power which can power up another access point or IP Camera.
Hardware
MCU/RF
Qualcomm Atheros QCA9558 (2.4GHz) + QCA9880 (5GHz)
PHY
Qualcomm Atheros AR8033 and AR8035
Memory
DDR2 128MB
Flash
16MB
Physical Interface
DC Power Jack
LAN : 2 x 10/100/1000 Gigabit Ethernet with PoE support 802.3at (LAN 1) + 802.3af PSE Out (LAN 2)
USB2.0 interface
Eject Button (USB eject)
RJ45 Console port
Reset / WPS Button
Power On / Off Switch
Power Requirement
Power over Ethernet, IEEE 802.3at
DC : 12V / 4A
Antenna
3 x External Dipole Detachable 2dBi Dual Band Antenna
Others
Internal Buzzer (Find me)
Wireless
Wireless Standard
IEEE 802.11 a/b/g/n/ac
Frequency Band
Radio Ⅰ: 802.11b/g/n  2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac  5.150~5.250(GHz), 5.250~5.350(GHz),
                 5.470~5.725(GHz), 5.725~5.850(GHz)
Operation Channels
2.4GHz : US/Canada 1-11;
2.4GHz : Europe 1-13;
2.4GHz : Japan 1-14
5GHz : The support channel is restricted by local regulatory requirements:
             36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
             132, 136, 140, 149, 153, 157, 161, 165
Transmit Power (Maximum transmit power is limited by local  regulation)
802.11b
27.5dBm@ 1Mbps
27.5dBm@ 11Mbps
802.11g
27.5dBm@ 6Mbps
23.5dBm@ 54Mbps
802.11n(2.4G)
27.5dBm@ MCS0 (HT20/40)
22.5dBm@ MCS7 (HT20/40)
802.11a
26.5dBm@ 6Mbps
22.5dBm@ 54Mbps
802.11a/n(5G)
27.5dBm@ MCS0/MCS8 (HT20/40)
22.5dBm@ MCS7/MCS15 (HT20/40)
802.11ac
27.5dBm@ MCS0 (VHT20/40/80)
22.5dBm@ MCS7 (VHT20/40/80)
19.5dBm@ MCS9 (VHT20/40/80)
Receiver Sensitivity(Typical)
802.11b
-93dBm@ 1Mbps
-85dBm@ 11Mbps
802.11g
-86dBm@ 6Mbps
-72dBm@ 54Mbps
802.11n(2.4G)
-83dBm@ MCS0 (HT20/40)
-66dBm@ MCS7 (HT20/40)
802.11a
-90dBm@ 6Mbps
-74dBm@ 54Mbps
802.11a/n(5G)
-90dBm@ MCS0 (HT20)
-70dBm@ MCS7 (HT20)
-87dBm@ MCS0 (HT40)
-68dBm@ MCS7 (HT40)
802.11ac
-84dBm@ MCS0 (VHT20/40/80)
-58dBm@ MCS9 (VHT40/80)
SOFTWARE
Operation Mode
Access Point / WDS Bridge / WDS Access Point
Multiple BSSID
Total 32 (16 for 2.4G, 16 for 5G)
VLANs
SSID and Ethernet port based Tag/Untag
(VID＝1～4094)
Wireless
Wireless Mode : 11 a/11b/11g/11n/11ac
Channel selection (Setting varies by country)
Channel bandwidth (Auto, 20MHz, 40MHz, 80MHz)
Transmission Rate :
2.4GHz : 11b, 11g, 11b/g, 11g/n, 11/b/g/n
5GHz : 11a, 11a/n, 11a/n/ac
Pass-through
Support IPv6 and VPN Pass-through
QoS
WMM, Max Associated Station Number
WPS
Software
Security
WEP Encryption – 64/128 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP or AES)
802.1x Authenticator : MD5/TLS/TTLS/PEAP
EAP-FAST, EAP-SIM, MAC Authentication
SSID Broadcast enable / disable
256 WLAN MAC Address Filter
WLAN L2 isolation (AP mode)
Wireless STA (Client) connected list
MANAGEMENT
Tx Power Control
Adjust transmit power by 10, 25, 50, 75, 90, 100%
Configuration
Web-based configuration HTTP/HTTPS/SSH/CLI
Firmware
Upgrade via WEB, CLI, USB and FTP.
SNMP
v1, v2c, v3. MIB II, IEEE802.11MIB, BridgeMIB, Interface MIB, Private MIB.
Auto-Channel
Automatically selecting lease congested channel.
Backup & Restore
Save & Restore settings through management interfaces and USB memory stick.
CLI
Support Command Line Interface.
ADVANCED FEATURES
Power Saving
ARP Proxy can help to save connected wireless client’s battery by being a proxy to reply the ARP request from LAN side.
VLAN Tagging
VLAN tagging per SSID and Ethernet port which also works in WDS interfaces.
High Speed Hand-Over between Access Points
With optimized PMK-Caching, the hand-over speed of mobile clients between access points can be highly improved.
Smooth Site Survey
Minimal ping and throughput loss during site survey procedure, producing stability for wireless connections in the local network environment.
WMM QoS Mapping
Configurable Wi-Fi Multimedia (WMM) parameters for better network traffic management.
Advanced Qos Management & Traffic Shaping
Traffic priority can be arranged and managed by SSID, MAC address, port and IP address.
High Speed Hand-Over between Access Points
Maximum number of users can be adjusted for each SSID.
Environment & Packaging
Temperature Range
Use PoE Switch:
Operation : 0 to 50℃ (32℉ to 122℉)
Storage : -20 to 60℃ (-4℉ to 140℉)
Use Power Adapter:
Operation : 0 to 40℃ (32℉ to 104℉)
Storage : -20 to 60℃ (-4℉ to 140℉)
Humidity
90% or less – Operating, 90% or less - StorageI
Certifications
FCC, CE
Dimensions
183.3(L) x 183.3(W) x 36(H)mm
Weight
560g (with Antennas)
Package Content
1 x EW-7679WAC Access Point
3 x External Dipole Detachable 2dBi Dual Band Antenna
1 x Power Adapter (12V / 4A)
1 x Power cord
2 x Mounting Bracket
1 x Wall Mount Screws Kit
1 x Ethernet Cable
1 x Quick Installation Guide
