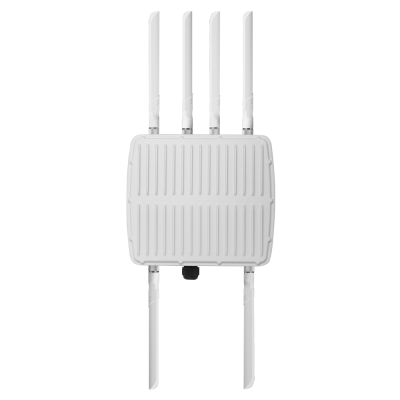

EW-7679OAP
AC1750 3T3R Outdoor IP67 PoE AP
- IP-67 water proof enclosure
- 3T3R Concurrent Dual Band
- Up to 1750Mbps
- QCA9558+QCA9880 Solution
- 1 Gigabit PoE Port
- 6 External Antennas
The EW-7679OAP is a highly-reliable industrial standard outdoor wireless access point designed to extend wireless network coverage in outdoor environment.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7679OAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. Six detachable N-Type antennas with 27.5dBm maximum power transmission provide larger wireless coverage for your environment. The solid capacitors used in the EW-7679OAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
With industrial standard IP67 rated enclosure, EW-7679OAP is able to against challenging outdoor weather conditions such as heavy rain, heat, snow and smoke. EW-7679OAP delivers reliable performance that will be the best commitment for your business.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7679OAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. Six detachable N-Type antennas with 27.5dBm maximum power transmission provide larger wireless coverage for your environment. The solid capacitors used in the EW-7679OAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
With industrial standard IP67 rated enclosure, EW-7679OAP is able to against challenging outdoor weather conditions such as heavy rain, heat, snow and smoke. EW-7679OAP delivers reliable performance that will be the best commitment for your business.
HARDWARE SPECIFICATIONS
- MCU/RF
- Qualcomm Atheros QCA9558 (2.4GHz) + QCA9880 (5GHz)
- PHY
- Qualcomm Atheros AR8035
- Memory
- DDR2 128MB
- Flash
- 16MB
- Physical Interface
- -LAN : 1 x 10/100/1000 Gigabit Ethernet with 802.3at PoE support
-3 LED + 1 Reset M25 interface
- Power Requirement
- Power over Ethernet, IEEE 802.3at
- Antenna
- External N-Type 2.4G 4dBi Antenna x 3
External N-Type 5G 6dBi Antenna x 3
- LED Behavior
- Power: Green
System On: Power on
System Off: Power off
LAN LED: Green
On: LAN port is connected
Off: LAN port is unconnected
Blinking: Activity (transferring and receiving)
Wireless LED: Green
On: Wireless Enable
Off: Wireless Disable
Blinking: Activity (transferring and receiving)
RF SPECIFICATIONS
- Wireless Standard
- IEEE 802.11 a/b/g/n/ac
- Frequency Band
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac 5.150~5.250(GHz), 5.250~5.350(GHz),
5.470~5.725(GHz), 5.725~5.850(GHz)
- Operation Channels
- 2.4GHz : US/Canada 1-11; 2.4GHz : Europe 1-13; 2.4GHz : Japan 1-14
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Transmit Power
- 802.11b
27.5dBm@ 1Mbps
27.5dBm@ 11Mbps
802.11g
27.5dBm@ 6Mbps
23.5dBm@ 54Mbps
802.11n(2.4G)
27.5dBm@ MCS0 (HT20/40)
22.5dBm@ MCS7 (HT20/40)
802.11a
26.5dBm@ 6Mbps
22.5dBm@ 54Mbps
802.11a/n(5G)
27.5dBm@ MCS0/MCS8 (HT20/40)
22.5dBm@ MCS7/MCS15 (HT20/40)
802.11ac
27.5dBm@ MCS0 (VHT20/40/80)
22.5dBm@ MCS7 (VHT20/40/80)
19.5dBm@ MCS9 (VHT20/40/80)
- Receiver Sensitivity
- 802.11b
-93dBm@ 1Mbps
-85dBm@ 11Mbps
802.11g
-86dBm@ 54Mbps
-72dBm@ 54Mbps
802.11n(2.4G)
-83dBm@ MCS0 (HT20/40)
-66dBm@ MCS7 (HT20/40)
802.11a
-90dBm@ 6Mbps
-74dBm@ 54Mbps
802.11a/n(5G)
-90dBm@ MCS0 (HT20)
-70dBm@ MCS7 (HT20)
-87dBm@ MCS0 (HT40)
-68dBm@ MCS7 (HT40)
802.11ac
-84dBm@ MCS0 (VHT20/40/80)
-58dBm@ MCS9 (VHT40/80)
SOFTWARE SPECIFICATIONS
- Operation Mode
- Access Point / WDS Bridge / WDS Access Point
- Multiple BSSID
- Total 32 (16 for 2.4G, 16 for 5G)
- VLANs
- SSID and Ethernet port based Tag/Untag(VID＝1～4094)
- Wireless
- Wireless Mode : 11 a/11b/11g/11n/11ac
Channel selection (Setting varies by country)
Channel bandwidth (Auto, 20MHz, 40MHz, 80MHz)
Transmission Rate :
2.4GHz : 11b, 11g, 11b/g, 11g/n, 11/b/g/n
5GHz : 11a, 11a/n, 11a/n/ac
- Pass-through
- Support IPv6 and VPN Pass-through
- QoS
- WMM, Max Associated Station Number
- WPS
- Software
- Security
- WEP Encryption – 64/128 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP or AES)
802.1x Authenticator : MD5/TLS/TTLS/PEAP
EAP-FAST, EAP-SIM, MAC Authentication
SSID Broadcast enable / disable
256 WLAN MAC Address Filter
WLAN L2 isolation (AP mode)
Wireless STA (Client) connected list
MANAGEMENT
- Tx Power Control
- Adjust transmit power by 10, 25, 50, 75, 90, 100%
- Configuration
- Web-based configuration HTTP/HTTPS/SSH/CLI
- Firmware
- Upgrade via WEB, CLI, TFTP and FTP
- SNMP
- v1, v2c, v3. MIB II, IEEE802.11MIB, BridgeMIB, Interface MIB, Private MIB
- Auto-Channel
- Automatically selecting lease congested channel
- Backup & Restore
- Save & Restore settings through management interfaces
- CLI
- Support Command Line Interface
- Power Saving
- Support ARP Proxy for connected wireless client
Environment & Physical
- Power
- 802.3at (PoE Injector Optional)
- Dimensions(L x W x H)
- 25.67 x 22.67 x 9.03 cm
- Weight
- 2980g
- Power Consumption
(Full Loading) - 22W
- Mounting
- Pole / Wall
