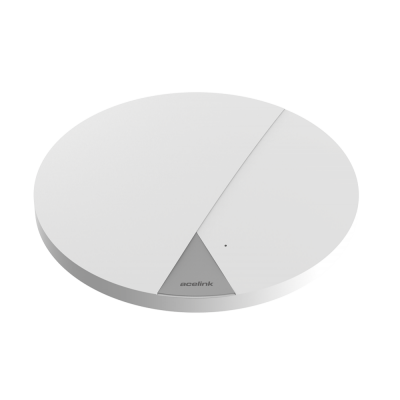

EW-7679CAP
AC1750 3T3R Ceiling Mount PoE AP
- 3T3R Concurrent Dual Band
- Up to 1750Mbps
- QCA9558+QCA9880 Solution
- 1 Gigabit PoE Port
- Built-in NMS and Radius Server
- Ceiling Mount Design
The EW-7679CAP is a highly-reliable industrial ceiling-mount wireless access point designed to extend wireless network coverage for enterprise users.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7679CAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility.
Maximum 27.5dBm power transmission provides larger wireless coverage for your environment. The solid capacitors used in the EW-7679CAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
Additionally, the EW-7679CAP designed with white and elegant outlook which could be a good decoration for your interior design. EW-7679CAP also features with multiple mounting types which provide easy installation for deployment.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7679CAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility.
Maximum 27.5dBm power transmission provides larger wireless coverage for your environment. The solid capacitors used in the EW-7679CAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
Additionally, the EW-7679CAP designed with white and elegant outlook which could be a good decoration for your interior design. EW-7679CAP also features with multiple mounting types which provide easy installation for deployment.
Hardware
- MCU/RF
- Qualcomm Atheros QCA9558 (2.4GHz) + QCA9880 (5GHz)
- PHY/Switch
- Qualcomm Atheros AR8035
- Memory
- DDR2 128MB
- Flash
- 16MB
- Physical Interface
- -LAN : 1 x 10/100/1000 Gigabit Ethernet with 802.3at PoE support
- Reset Button
-USB2.0 interface
-DC Power Jack
- Power Requirement
- Power over Ethernet, IEEE 802.3at
DC : 12V / 2A
- Antenna
- Internal PIFA Antenna (2.4GHz x 3, 5GHz x 3)
- Others
- Internal Buzzer (Find me)
Wireless
- Wireless Standard
- IEEE 802.11 a/b/g/n/ac
- Frequency Band
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac 5.150~5.250(GHz), 5.250~5.350(GHz),
5.470~5.725(GHz), 5.725~5.850(GHz)
- Operating Frequency
- 2.4GHz : US/Canada 1-11; 2.4GHz : Europe 1-13; 2.4GHz : Japan 1-14
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Operation Channels
- 2.4GHz : US/Canada 1-11; 2.4GHz : Europe 1-13;
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Transmit Power
- 802.11b
23dBm@ 1Mbps
23dBm@ 11Mbps
802.11g
23dBm@ 6Mbps
19dBm@ 54Mbps
802.11n (2.4G)
23dBm@ MCS0 (HT20/40)
18dBm@ MCS7 (HT20/40)
802.11a
22dBm@ 6Mbps
18dBm@ 54Mbps
802.11a/n (5G)
23dBm@ MCS0/MCS8 (HT20/40)
18dBm@ MCS7/MCS15 (HT20/40)
802.11ac
23dBm@ MCS0 (VHT20/40/80)
18dBm@ MCS7 (VHT20/40/80)
15dBm@ MCS9 (VHT20/40/80)
- Receiver Sensitivity
(Typical) - 802.11b
-93dBm@ 1Mbps
-85dBm@ 11Mbps
802.11g
-86dBm@ 6Mbps
-72dBm@ 54Mbps
802.11n (2.4G)
-83dBm@ MCS0 (HT20/40)
-66dBm@ MCS7 (HT20/40)
802.11a
-90dBm@ 6Mbps
-74dBm@ 54Mbps
802.11a/n (5G)
-90dBm@ MCS0 (HT20)
-69dBm@ MCS7 (HT20)
-87dBm@ MCS0 (HT40)
-68dBm@ MCS7 (HT40)
802.11ac
-84dBm@ MCS0 (VHT20/40/80)
-58dBm@ MCS9 (VHT40/80)
Software
- Operation Mode
- Access Point / WDS Bridge / WDS Access Point
- Multiple BSSID
- Total 32 (16 for 2.4G, 16 for 5G)
- VLANs
- SSID and Ethernet port based Tag/Untag(VID＝1～4094)
- Wireless
- Wireless Mode : 11 a/11b/11g/11n/11ac
Channel selection (Setting varies by country)
Channel bandwidth (Auto, 20MHz, 40MHz, 80MHz)
Transmission Rate :2.4GHz : 11b, 11g, 11b/g, 11g/n, 11/b/g/n
5GHz : 11a, 11a/n, 11a/n/ac
- Pass-through
- Support IPv6 and VPN Pass-through
- QoS
- WMM, Max Associated Station Number
- WPS
- Software
- Security
- WEP Encryption – 64/128 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP or AES)
802.1x Authenticator : MD5/TLS/TTLS/PEAP
EAP-FAST, EAP-SIM, MAC Authentication
SSID Broadcast enable / disable
256 WLAN MAC Address Filter
WLAN L2 isolation (AP mode)
Wireless STA(Client) connected list
Management
- Tx Power Control
- Adjust transmit power by 10, 25, 50, 75, 90, 100%
- Configuration
- Web-based configuration HTTP/HTTPS/SSH/CLI
- Firmware
- Upgrade via WEB, CLI, FTP.
- SNMP
- v1, v2c, v3. MIB II, IEEE802.11MIB, BridgeMIB, Interface MIB, Private MIB
- Auto-Channel
- Automatically selecting lease congested channel
- Backup & Restore
- Save & Restore settings through management interfaces and USB memory stick.
- CLI
- Support Command Line Interface
- Power Saving
- Support ARP Proxy for connected wireless client
Advanced Features
- Temperature Range
- Use PoE Switch:
Operation : 0 to 50℃ (32℉ to 122℉) / Storage : -20 to 60℃ (-4℉ to 140℉)
Use Power Adapter:
Operation : 0 to 40℃ (32℉ to 104℉) / Storage : -20 to 60℃ (-4℉ to 140℉)
- Humidity
- 90% or less – Operating, 90% or less - Storage
- Certifications
- FCC, CE
- Dimensions
- 208(D) x 32.1(H)mm
- Weight
- 590g
- Package Content
- 1 x EW-7679CAP Access Point
1 x Power Adapter (12V / 2A)
1 x Mounting Bracket
1 x Ceiling Mount/ Wall Mount Screw Kit ; 1 x T-Rail Mounting Kit
1 x Quick Installation Guide
