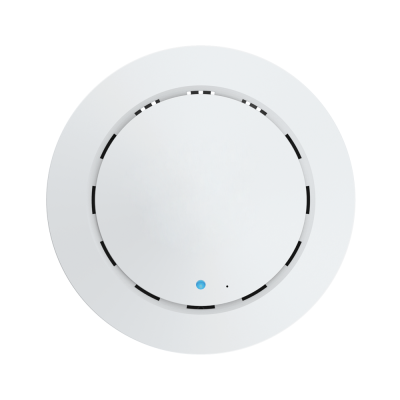

EW-7489CAP

AC1200 2T2R 11ac Wave 2 Ceiling Mount PoE AP

  • 2T2R Concurrent Dual Band
  • 11AC Wave 2 MU-MIMO
  • Up to 1200Mbps
  • Qualcomm QCA9563+9886 Solution
  • 16MB Flash + 128MB DRAM
  • 1 Gigabit PoE Port
  • Built-in NMS and Radius Server
  • Ceiling Mount Mount Design
Inquiry

The EW-7489CAP is a highly-reliable ceiling-mount wireless access point designed to extend wireless network coverage for enterprise users.  Featured Qualcomm Atheros Dakota QCA9563+9886 processor supporting the latest 11ac wave 2 standards and MU-MIMO function.  The EW-7479CAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility at an affordable cost.

The thin ceiling mount outlook is suited for various interior decorations. EW-7479CAP also features with multiple mounting kits which provide easy installation for deployment. Adopting the latest 802.11ac solution, EW-7479CAP is ideal for next-generation high throughput enterprise networking solution.
Hardware
CPU
QCA9563+QCA9886
Wireless Speed
802.11b/g/n 2T2R :  2.4G  300Mbps (256QAM)
802.11ac/a/n 2T2R :  5G   867Mbps (256QAM)
PHY/Switch
QCA8033
Memory
DDR2 128MB
Flash
SPI Flash 16MB
Amplifiers
2.4G FEM : RTC7626H
5G FEM : SKY85748-11
Physical Interface
-PoE : 10/100/1000 Gigabit Ethernet with standard 802.3af PoE support
-Reset Button
-DC Power Jack
Power Requirement
802.3af PoE
DC :12V/1A
Antenna
2 x dual-band Internal Antennas
Wireless
Wireless Standard
IEEE 802.11 ac/a/b/g/n
Operating Frequency
Radio Ⅰ: 802.11b/g/n  2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac  5.150~5.250(GHz), 5.250~5.350(GHz),
                 5.470~5.725(GHz), 5.725~5.850(GHz)
Operation Channels
2.4GHz : US/Canada 1-11;  2.4GHz : Europe 1-13;
5GHz : The support channel is restricted by local regulatory requirements:
             36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
             132, 136, 140, 149, 153, 157, 161, 165
2.4G RF SPEC
Rate               TX Power(dBm)       Sensitivity(dBm)
1Mbps                  20.5                          -90
11Mbps                20.5                          -88
6Mbps                  18.5                          -87
54Mbps                15                             -72
MCS0/HT20          18.5                          -88
MCS7/HT20          14                             -71
5G RF SPEC
Rate                 TX Power(dBm)      Sensitivity(dBm)
6Mbps                  21.5                          -88
54Mbps                17                             -71
MCS0/HT20          21.5                          -88
MCS7/HT20          17                             -68
MCS9/VHT80        14.5                          -56
ENVIRONMENT & PHYSICAL
Temperature Range
Operation : 0 to 50℃
Storage : -20 to 60℃
Humidity
90% or less – Operating, 90% or less - Storage
Certifications
Comply with CE/FCC (TBD)
PCBA Dimensions
130mm x 100mm
Dimensions
176(D) x 30(H)mm
Weight
343g
Package Content
1 x EW-7489CAP Access Point 1x Power Adapter (DC12V/1A) (Optional)
