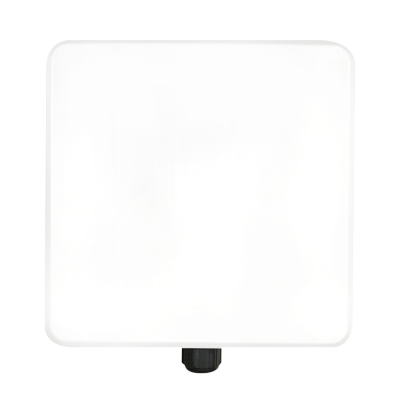

EW-7479OAP
AC1300 2T2R IP-67 Outdoor PoE AP
- IP-55 weather proof enclosure
- 2T2R Concurrent Dual Band
- 11AC Wave 2 MU-MIMO
- Up to 1750Mbps
- Qualcomm IPQ4019 chipset
- Gigabit PoE out Port for attachment of IP camera
- 2 External Antennas
The EW-7479OAP is a highly-reliable industrial standard outdoor wireless access point designed to extend wireless network coverage in outdoor environment.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7479OAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility.
The solid capacitors used in the EW-7479OAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
With industrial standard IP67 & EN60950-22 rated plastic enclosure, EW-7479OAP is able to against challenging outdoor weather conditions such as heavy rain, heat, snow and smoke. EW-7479OAP delivers reliable performance that will be the best commitment for your business.
With the latest wireless 802.11ac technology for improvements in the speed, reliability and quality of wireless communications, the EW-7479OAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility.
The solid capacitors used in the EW-7479OAP guarantees safety for long term usage. Power Saving function not only saves the power consumption of the access point but also saves the power of battery for connected mobile devices.
With industrial standard IP67 & EN60950-22 rated plastic enclosure, EW-7479OAP is able to against challenging outdoor weather conditions such as heavy rain, heat, snow and smoke. EW-7479OAP delivers reliable performance that will be the best commitment for your business.
HARDWARE SPECIFICATIONS
- MCU/RF
- Qualcomm IPQ4019
- PHY
- Qualcomm QCA8072
- Memory
- DDR3 128MB
- Flash
- 32MB
- Physical Interface
- 1 x Factory Reset Button 1 x Gigabit LAN (supports PoE IEEE 802.3af), IP67 rated, weather proof
- Power Requirement
- Power over Ethernet, IEEE 802.3af
- LED Indicate
- Power, Status, LAN1, LAN2, 2.4G, 5G
- Power Consumption
- AVG 12W,Peak 15W (without PSE out)
- Antenna
- 1x 2.4/5GHz dualband with vertical polarization (3dBi)
1x 2.4GHz single band with vertical polarization (3dBi)
1x 5GHz single band with horizontal polarization (4dBi)
RF SPECIFICATIONS
- Wireless Standard
- IEEE 802.11 a/b/g/n/ac
- Frequency Band
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac 5.150~5.250(GHz), 5.250~5.350(GHz),
5.470~5.725(GHz), 5.725~5.850(GHz)
- Operation Channels
- 2.4GHz : US/Canada 1-11; 2.4GHz : Europe 1-13; 2.4GHz : Japan 1-14
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Supported Rates
- 802.11ac: up to 867 Mbps
802.11n: up to 400 Mbps
802.11a/g: up to 54 Mbps
802.11b: up to 11 Mbps
- 2.4G SPEC
- Rate TX Power Sensitivity
1Mbps 23dBm -93dBm
6Mbps 23dBm -90dBm
54Mbps 19.5dBm -72dBm
MCS0/HT20 23dBm -88dBm
MCS7/HT20 19dBm -70dBm
MCS0/HT40 23dBm -86dBm
MCS7/HT40 19dBm -68dBm
MCS9/VHT40 17.5dBm -57dBm
- 5G SPEC
- Rate TX Power Sensitivity
6Mbps 25dBm -89dBm
54Mbps 20dBm -72dBm
MCS0/HT20 23dBm -86dBm
MCS7/HT20 20dBm -70dBm
MCS0/HT40 23dBm -86dBm
MCS7/HT40 20dBm -67dBm
MCS0/VHT80 23dBm -83dBm
MCS9/VHT80 18dBm -57dBm
SOFTWARE SPECIFICATIONS
- Operation Mode
- Access Point / WDS Bridge / WDS Access Point
- Multiple BSSID
- Total 32 (16 for 2.4G, 16 for 5G)
- VLANs
- SSID and Ethernet port based Tag/Untag (VID＝1～4094)
- Wireless
- Wireless Mode : 11 a/11b/11g/11n/11ac
Channel selection (Setting varies by country)
Channel bandwidth (Auto, 20MHz, 40MHz, 80MHz)
Transmission Rate :
2.4GHz : 11b, 11g, 11b/g, 11g/n, 11/b/g/n
5GHz : 11a, 11a/n, 11a/n/ac
- Pass-through
- Support IPv6 and VPN Pass-through
- QoS
- WMM, Max Associated Station Number
- WPS
- Software
- Security
- WEP Encryption – 64/128 bit
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP or AES)
802.1x Authenticator : MD5/TLS/TTLS/PEAP
EAP-FAST, EAP-SIM, MAC Authentication
SSID Broadcast enable / disable
256 WLAN MAC Address Filter
WLAN L2 isolation (AP mode)
Wireless STA(Client) connected list
MANAGEMENT
- Tx Power Control
- Adjust transmit power by 10, 25, 50, 75, 90, 100%
- Configuration
- Web-based configuration HTTP/HTTPS/SSH/CLI
- Firmware
- Upgrade via WEB, CLI, TFTP and FTP
- SNMP
- v1, v2c, v3. MIB II, IEEE802.11MIB, BridgeMIB, Interface MIB, Private MIB
- Auto-Channel
- Automatically selecting lease congested channel
- Backup & Restore
- Save & Restore settings through management interfaces
- CLI
- Support Command Line Interface
- Power Saving
- Support ARP Proxy for connected wireless client
ENVIRONMENT & PHYSICAL
- Temperature Range
- Operation : -20℃ to 55℃
- Humidity
- 90% or less – Operating, 90% or less - Storage
- Certifications
- FCC, CE
- Dimensions
- 229 (L) x 229 (W) x62.6 (H)mm
- Weight
- 2.98Kg
- Weatherproof rated
- IP5X, IPX6
- Package Content
- 1 x EW-7479OAP Access Point
1 x Mounting Bracket
1 x Wall / Pole mount screw kit
1 x Quick Installation Guide
