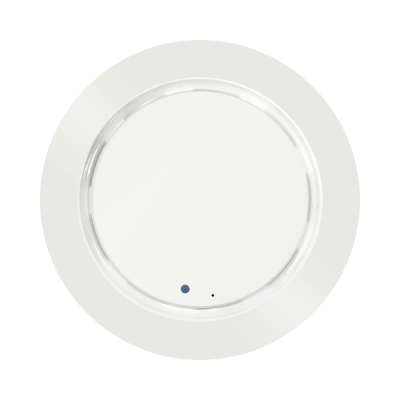

EW-7479CAP
AC1300 2T2R 11ac Wave 2 Ceiling Mount PoE AP
- 2T2R Concurrent Dual Band
- 11AC Wave 2 MU-MIMO
- Up to 1300Mbps
- Qualcomm IPQ4018 Solution
- 32MB Flash + 256MB RAM
- 1 Gigabit PoE Port + 1 Gigabit Port
- Built-in NMS and Radius Server
- Ceiling Mount Mount Design
The EW-7479CAP is a highly-reliable ceiling-mount wireless access point designed to extend wireless network coverage for enterprise users. Featured Qualcomm Atheros Dakota IPQ4018 processor supporting the latest 11ac wave 2 standards and MU-MIMO function. The EW-7479CAP provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. It supports 2T2R (2x2) technology, which runs concurrent 5GHz up to 867Mbps and 2.4GHz 400Mbps.
The thin ceiling mount outlook is suited for various interior decorations. EW-7479CAP also features with multiple mounting kits which provide easy installation for deployment. Adopting the latest 802.11ac solution, EW-7479CAP is ideal for next-generation high throughput enterprise networking solution.
The thin ceiling mount outlook is suited for various interior decorations. EW-7479CAP also features with multiple mounting kits which provide easy installation for deployment. Adopting the latest 802.11ac solution, EW-7479CAP is ideal for next-generation high throughput enterprise networking solution.
HARDWARE SPECIFICATIONS
- MCU/RF CPU
- IPQ4018 Quad-core Cortex A7 CPU 710MHz ( Integrated 2T2R DBDC RF)
- Wireless Speed
- 802.11b/g/n 2T2R : 2.4G 400Mbps (256QAM)
802.11ac/a/n 2T2R : 5G 867Mbps (256QAM)
- PHY/Switch
- QCA8072
- Memory
- DDR3 256MB
- Flash
- SPI Flash 32MB
- Amplifiers
- 2.4G FEM : QFE1922
5G FEM : QFE1952
- Physical Interface
- -PoE : 10/100/1000 Gigabit Ethernet with standard 802.3af PoE
support (Eth0)
-LAN : 10/100/1000 Gigabit Ethernet (Eth1)
-Reset Button
-DC Power Jack
- Power Requirement
- 802.3af PoE
DC :12V/1A
- Antenna
- 4 Single Band Internal Antennas
- Others
- Optional BLE Module (BT4.0)
RF SPECIFICATIONS
- Wireless Standard
- IEEE 802.11 ac/a/b/g/n
- Frequency Band
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
- Operating Frequency
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac 5.150~5.250(GHz), 5.250~5.350(GHz),
5.470~5.725(GHz), 5.725~5.850(GHz)
- Operation Channels
- 2.4GHz : US/Canada 1-11;
2.4GHz : Europe 1-13;
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Transmit Power
- 802.11b
20dBm@ 1Mbps
20dBm@ 11Mbps
802.11g
20dBm@ 6Mbps
17dBm@54Mbps
802.11n (2.4G)
20dBm@MCS0 (HT20)
16dBm@MCS7 (HT20)
20dBm@MCS0 HT40)
16dBm@MCS7 (HT40)
14dBm@MCS9 (HT40)
802.11a
19dBm @ 6Mbps
16dBm@54Mbps
802.11n (5G)
19dBm@MCS0(HT20)
16dBm@MCS7 (HT20)
18dBm@MCS0(HT40)
16dBm@MCS7 (HT40)
802.11ac
18dBm@MCS0 (VHT80)
16dBm@MCS7 (VHT80)
14dBm@MCS9 (VHT80)
- Receiver Sensitivity
- 802.11b
-92dBm@ 1Mbps
-86dBm@11Mbps
802.11g
-86dBm@6Mbps
-67dBm@54Mbps
802.11n (2.4G)
-82dBm@MCS0 (HT20)
-66dBm@MCS7 (HT20)
-79dBm@MCS0 (HT40)
-63dBm@MCS7 (HT40)
-57dBm@MCS9 (HT40)
802.11a
-85dBm@6Mbps
-68dBm@54Mbps
802.11n (5G)
-85dBm@MCS0 (HT20)
-64dBm@MCS7 (HT20)
-82dBm@MCS0 (HT40)
-63dBm@MCS7 (HT40)
802.11ac
-78dBm@MCS0 (VHT80)
-61dBm@MCS7 (VHT80)
-54dBm@MCS9 (VHT80)
ENVIRONMENT & PHYSICAL
- Temperature Range
- Operation : 0 to 40℃ (32℉ to 104℉)
Storage : -20 to 60℃ (-4℉ to 140℉)
- Humidity
- 90% or less – Operating, 90% or less - Storage
- Certifications
- Comply with CE/FCC (TBD)
- PCBA Dimensions
- 130mm x 100mm
- Dimensions
- 176(D) x 30(H)mm
- Weight
- 343g
- Package Content
- 1 x EW-7479CAP Access Point
1x Power Adapter (DC12V/1A) (Optional)
1 x Ethernet Cable (Optional)
