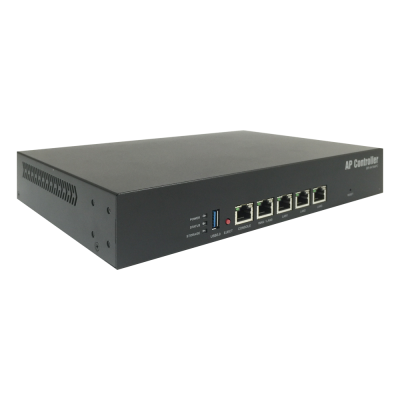

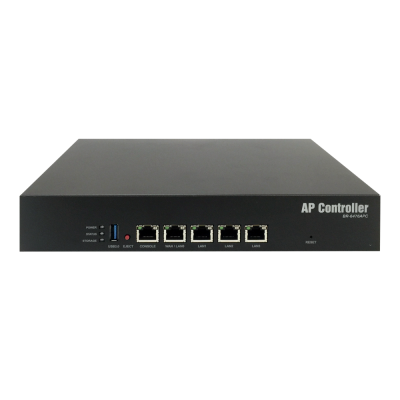

BR-6476APC

Wireless AP Controller

  • AP Management Controller
  • Control up to 200 APs
  • 5 Gigabit Ports
  • Guest Service and Captive Portal
  • Floor Plan and Google Maps
  • Support Various Acelink Models

With demand for Internet connection of mobile devices growing rapidly, high scalability WLAN and centralized management become necessary for wireless device deployments. Acelink’s Wireless LAN Access Point Controller, The BR-6476APC, can centralize WLAN management to reduce extra efforts, and capable of extending networks flexibly and fulfilling different deploy requirements.

The BR-6476APC is easy to use and scalable for Hotels, Schools, Chain Stores, Logistic Centers and MRT Stations as well as small to medium enterprises to configure network solutions that meet their specific needs.

You can configure and manage multiple APs at once.  You can setup Zone Plan to plan your AP installation.  In addition, Google Maps are supported.  The captive portal function make it easy to create account for guest service.






Specifications
MCU
MEDIATEK MT7621A
Flash
64MB
Memory
DDR3 512MB

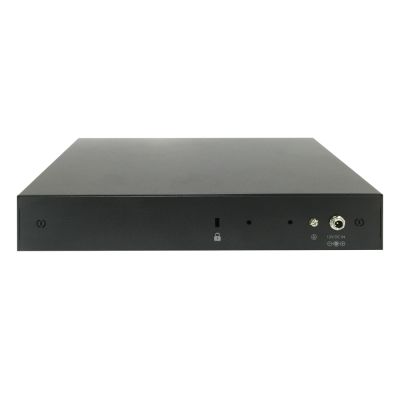

Physical Interface
- 1 x 10/100/1000M Ethernet WAN Port
- 3 x 10/100/1000M Ethernet LAN Ports
- 1 x Console Port
- 1 x Reset Button
- 1 x USB3.0 Port
- 1 x USB3.0 Eject Button
- 1 x USB2.0 Port (Internal)
- 1 x DC Power Jack
- 1 x Grounding Terminal
- 1 x Security Lock
- 2 x Mini PCIe Socket (Full-size x 1, Half-size x 1) (Optional)
Power Requirement
DC : 12V / 1.5A
Others
Internal Buzzer (Find me)
Real Time Clock + Super CAP
ENVIRONMENT & PHYSICAL
Temperature Range
Operation : 0 to 50℃ (32℉ to 122℉)
Storage : -20 to 60℃ (-4℉ to 140℉)
Humidity
90% or less – Operating,  90% or less - Storage
Certifications
FCC, CE (TBD)
Dimensions
265(L) x 180(W) x 44(H)mm
Weight
990g
Package Content
1 x BR-6476APC AP Controller
1 x Power Adapter (12V / 1.5A)
1 x Quick Installation Guide
