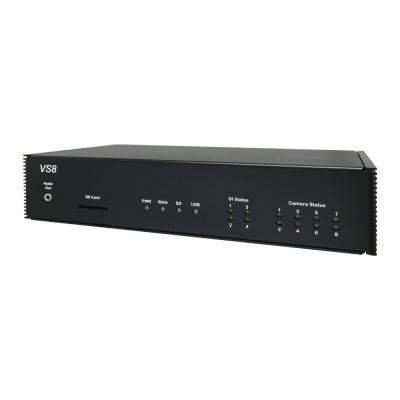

VS-1008
CCTV SecuBox - 1080p Cloud Video Server
- Supports AHD 1080P/720P, TVI 1080P/720P and CVBS camera
- Aluminum alloy housing and fan-less design
- Supports H.264, AAC format, and audio/video sync.
- Recover lost videos when the camera disconnects.
- Supports cloud storage with the total security cloud service.
Connect your CCTV cameras to IP and cloud. No geeky skills needed.
Video SecuBox makes connecting 90% CCTV cameras a piece of cake.
Mobile APP for controlling of key function and live streaming with limited number of seconds
Link to Cloud - Prior to installation, make sure your CCTV cameras are on the same installation topology
Cloud recording services are 100% anonymous and utilize Amazon’s secure cloud-based technology with PKI and SSL protection and backup video in local storage when the internet is weak always.
Video SecuBox makes connecting 90% CCTV cameras a piece of cake.
Mobile APP for controlling of key function and live streaming with limited number of seconds
Link to Cloud - Prior to installation, make sure your CCTV cameras are on the same installation topology
Cloud recording services are 100% anonymous and utilize Amazon’s secure cloud-based technology with PKI and SSL protection and backup video in local storage when the internet is weak always.
Video
- RAM
- 2GB
- FLASH
- 1GB
- Image Compression
- H.264
- Transmission Standard
- RTP interleaved over RTSP
- Video Streaming
- Two channels
- Max Resolution
- AH1080P @ 30fps per channels
Max output 240fps for 8 Camera
- Image Adjustment
- Brightness / Contrast / Sharpness
- Bit Rate
- 100kbps – 10Mbps for each camera
- Digital Noise Reduction
- DNR - Yes

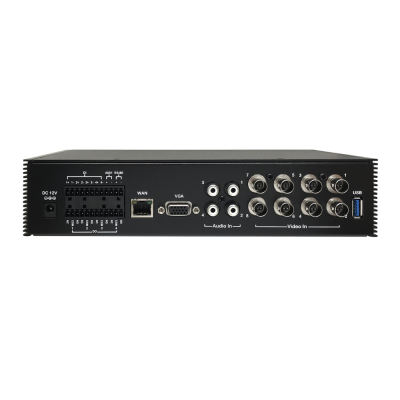

- Video Input
- BNC x 8
Audio
- Audio Format
- AAC
- Two way Audio
- 1 Channel
- Audio / Video Sync
- 4 Channel
- Audio Input
- RCA x 4
- Audio Output
- 3.5mm phone jack x 1
Network
- Interface
- 10/100/1000 Base TX Ethernet ( RJ-45)
- Protocol
- IPv4, TCP/IP, HTTP, RTSP/RTP, RTCP,DHCP,NTP,PPPoE
- IP Filter
- Yes
- Login Safety
- Username / Password
Alert
- Motion Detection
- 3 Scalable Windows
- GPIO (DI/DO)
- Input x 4, Output x 4
Voltage Range: >= 12 & < 24VDC
- Power
- 12 +/-5% / 500 mA x 1
Recording
- Cloud Recording Mode
- Schedule/Continuous/ Event Recording
Via Acelink Cloud
(Default: Event Recording)
- SD Card
- Support SD/SDHC, 128GB+
- Pre-event Recording
- 0 – 10sec (Default :5sec)
- Post-event Recording
- 5 – 300sec (Default: 20sec)
Other
- RS485
- Yes
- H/W Reset
- Yes
- Reset Button
- Press 10sec to factory default setting
- OTA
- Yes
- VGA
- VGA (D-SUB) x1 for 1024 x768
- Speed Dome
- Pelco D/P
- LED
- Operating, Network, SD and Status
- Power
- DC12V / Max 24W
Environment
- Operating Temp.
- 0°C~65°C (-22°F~131°F)
- Humidity
- 10%~90% RH
Mechanical Spec
- Dimensions, Weight
- 256mm x 128mm x 54mm
- Weight
- 840g
Special Features
- Cloud Recording
- Optional Storage Plan by demand
- Remote APP
- TSC viewer APP for Ios and Android version
Certificate & Warranty
- CE class B , FCC class B; Warranty 12 Months
