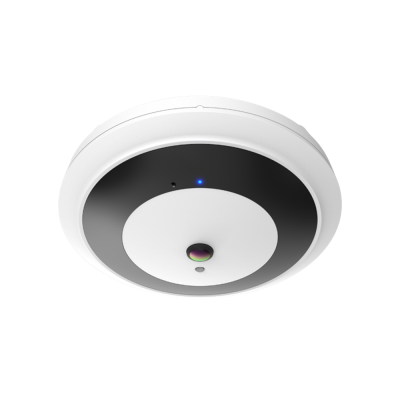

IC-5250AP
H.265 5M Fisheye Camera with AC1300 Access Point
- H.265(HEVC), H.264 high profile, main profile, baseline and MJPEG simultaneously
- 4 pcs non- visible IR LED for office ceiling using with 5 Meter range
- Power over Ethernet: IEEE 802.3af Class3
- ONVIF compliant
- 802.11ac Wave 2 High Speed Dual-Band
- Efficient MU-MIMO
- High Performance Wi-Fi
- Compact & Durable Housing
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- 802.11r/k Fast Roaming
- Wide Coverage & High Sensitivity
- Built-In RADIUS Server
802.11ac Dual Band Concurrent
The IC-5250AP is a highly-reliable ceiling-mount wireless access point designed to extend wireless network coverage for enterprise users and supporting the latest 11ac wave 2 standards and MU-MIMO function and provides simultaneous operation in both 2.4GHz and 5GHz wireless coverage for maximum flexibility. It supports 2T2R (2x2) technology, which runs concurrent 5GHz up to 867Mbps and 2.4GHz 400Mbps.High-Quality 5-Megapixel Video Solution
5-Megapixel Panoramic Fisheye Camera is a high-definition professional surveillance solution suitable for both SMBs and enterprises. The camera uses a high-sensitivity 1/2.8” 5-megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. With its fisheye lens, a high-resolution sensor, distortion correction and PoE support, it’s the ideal solution for monitoring large areas with a single camera without the need for additional accessories.Camera
- Image Device
- Sony 1/2.8” Exmor™ 5 Megapixel
- Effective Pixels
- 2592x1944
- Lens
- Fixed Lens (1.333 mm)
- Optical Angle
- 180 degree
- Iris
- Fixed Iris
- Min. Illumination
- Color: 0.02 lux @F1.2 (AGC on)
B/W: 0.005 lux @F1.2 (AGC on)
- Day & Night
- TDN (Mechanical ICR),Support auto / manual
Video
- Video Encoder
- H.265(HEVC), H.264 (base line, main-profile, and hi-profile) and MJPEG simultaneously
- Video Profile
- 3 streams simultaneously
- Frame Rate
- Up to 30fps in all resolutions
- Exposure Control
- Auto Exposure
BLC On/Off
Enhanced WDR
- Image Setting
- Configurable image size, quality, frame rate, and bit rate
Configurable shutter speed, brightness, saturation, contrast, sharpness and 3D filter.
Auto White Balance (AWB)
Auto Gain Control (AGC)
Audio
- Audio Encoder
- G.711 µ-law
MPEG2-AAC LC
- Audio Streaming
- Two-way
- Microphone
- D-MIC
- Audio Output
- Line Out
Network
- Supported Protocols
- ONVIF Profile S compliant
- Security
- Password protection, IP address filtering, HTTPS encrypted data transmission, user access log
- Users
- 10 simultaneous unicast users
- Ethernet
- 10Base-T/100Base-TX auto negotiation
System Integration
- Application Programming Interface
- ONVIF compatible
- Alarm Triggers
- Video motion detection
Audio Detection
Network Disconnect
- Motion Detection
- 3-zone video motion detection with included or excluded options
General
- Power Supply
- DC12V
- PoE
- IEEE 802.3af class 3
- Power Consumption
- TBD
- Connectors
- RJ-45 10Base-T/100Base-TX
12VDC
External MIC input
Factory default reset / One push focus
Internal MicroSD slot (Embedded SD)
- Indication LED
- 3 color Indicator LEDs
- Operating Temperature
- 0°C to 50°C
- Operating Humidity
- 20% ~ 80% (non-condensing)
- Certification
- CE, FCC, RoHS
Viewing System
- OS
- Windows® 7, 8, 10
- Browser
- IE 9.0 or later, Mozilla Firefox, Chrome, Safari
Wi-Fi Capability
- MCU/RF
- CPU:IPQ4018 Quad-core Cortex A7 CPU 710MHz(Integrated 2T2R DBDC RF)
- Wireless Speed
- 802.11b/g/n 2T2R : 2.4G 400Mbps (256QAM)
802.11ac/a/n 2T2R : 5G 867Mbps (256QAM)
- PHY/Switch
- QCA8072
- Memory
- DDR3 256MB
- SPI Flash
- SPI Flash 32MB
- Amplifiers
- 2.4G FEM : QFE1922
5G FEM : QFE1952
- Physical Interface
- -PoE : 10/100/1000 Gigabit Ethernet with standard 802.3af/at PoE support (Eth0)
-Reset Button
-DC Power Jack
- Antenna
- 4 Single Band Internal Antennas
RF
- Wireless Standard
- IEEE 802.11 ac/a/b/g/n
- Operating Frequency
- Radio Ⅰ: 802.11b/g/n 2.4000~2.4835(GHz)
Radio Ⅱ: 802.11a/n/ac 5.150~5.250(GHz), 5.250~5.350(GHz), 5.470~5.725(GHz), 5.725~5.850(GHz)
- Operation Channels
- 2.4GHz : US/Canada 1-11; 2.4GHz : Europe 1-13;
5GHz : The support channel is restricted by local regulatory requirements:
36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128,
132, 136, 140, 149, 153, 157, 161, 165
- Transmit Power
(Typical values)
(The final RF output power will be depend on each country’s regulation)
(TBD) - 802.11b
20dBm@ 1Mbps
20dBm@ 11Mbps
802.11g
20dBm@ 6Mbps
17dBm@54Mbps
802.11n (2.4G)
20dBm@MCS0 (HT20)
16dBm@MCS7 (HT20)
20dBm@MCS0 HT40)
16dBm@MCS7 (HT40)
14dBm@MCS9 (HT40)
802.11a
19dBm @ 6Mbps
16dBm@54Mbps
802.11n (5G)
19dBm@MCS0(HT20)
16dBm@MCS7 (HT20)
18dBm@MCS0(HT40)
16dBm@MCS7 (HT40)
802.11ac
18dBm@MCS0 (VHT80)
16dBm@MCS7 (VHT80)
14dBm@MCS9 (VHT80)
- Receiver Sensitivity
(Typical values)
(TBD) - 802.11b
-92dBm@ 1Mbps
-86dBm@11Mbps
802.11g
-86dBm@6Mbps
-67dBm@54Mbps
802.11n (2.4G)
-82dBm@MCS0 (HT20)
-66dBm@MCS7 (HT20)
-79dBm@MCS0 (HT40)
-63dBm@MCS7 (HT40)
-57dBm@MCS9 (HT40)
802.11a
-85dBm@6Mbps
-68dBm@54Mbps
802.11n (5G)
-85dBm@MCS0 (HT20)
-64dBm@MCS7 (HT20)
-82dBm@MCS0 (HT40)
-63dBm@MCS7 (HT40)
802.11ac
-78dBm@MCS0 (VHT80)
-61dBm@MCS7 (VHT80)
-54dBm@MCS9 (VHT80)
