AIOT

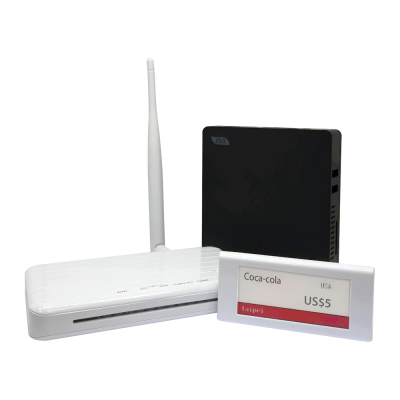

EL-2000Z

Advance ESL System

Replace e-labels by system automatically

Refresh information immediately and Easy to manage promotion plan
Eye-catching design by colorful label

Outstanding solution and secure encrypted data

Total Solution and reduce the integration entry barriers
Our services are 100% anonymous and utilize Amazon’s secure cloud-based technology with PKI and SSL protection.

Powerful Cloud Dashboard

Provide a dashboard which is running on the cloud and all admin and operator can access it remotely and  highly integration with pos system and can import or export data at once

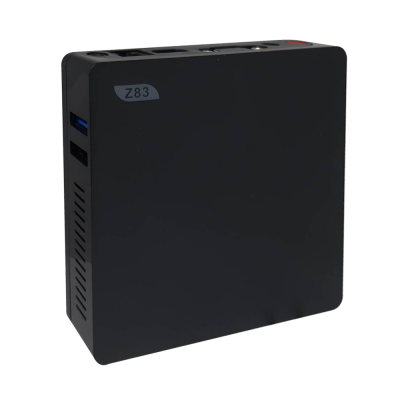

Master
S/N
EL-2000ZM
Interface
Power, Reset, Lan-Link/ ACT, Reset, USB, SD Slot, HDMI
Capability
Up to 1000 of Coordinator
Power Supply
12V DC/1A external power supply
Operating Temperature
0 – 40 degree C
Dimension (WxHxD mm)
119.5x 24 x 24 mm

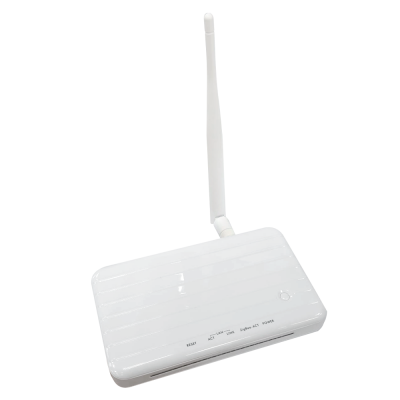

Coordinator
S/N
EL-2000ZC
Interface
5 LEDs, Power, ZigBee-ACT, Lan-Link/ ACT, Reset
Wireless Interface
Zigbee (2.4g) – External Antenna
Capability
Up to 3,000 of ESL
Power Supply
5V DC/1A external power supply
Operating Temperature
0 – 40 degree C
Dimension (WxHxD mm)
147.8 x 85 x 22.8 mm

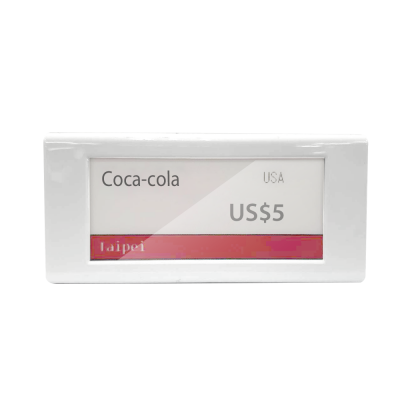

ESL
S/N
EL-2029ZN
E-ink display
2.9”
Resolution
296 x 128 pixels (112 dpi)
Color
Black/ White/ Red
Wireless
Zigbee (2.4g)
Battery
CR2032 * 3pcs
Battery Life
2.5 years +
Dimension
93.3 x 43.5 x 12.2 mm
NFC
Yes (optional)
ESL
S/N​
EL-2056ZN​
E-ink display
5.65”
Resolution
600 x 448 pixels (132 dpi)
Color
Black/ White/ Red
Wireless
Zigbee (2.4g)
Battery
CR2032 * 4pcs
Battery Life
2.5 years +
Dimension
140.7 x 121.0 x 20.6 mm
NFC
Yes (optional)
