AIOT

AI-1001W V4

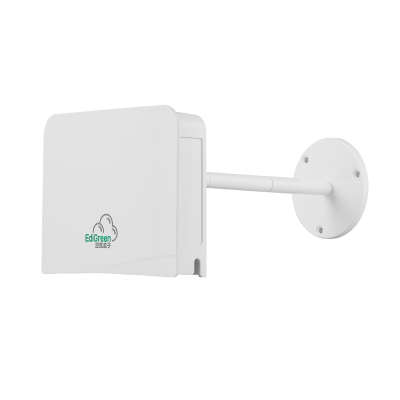

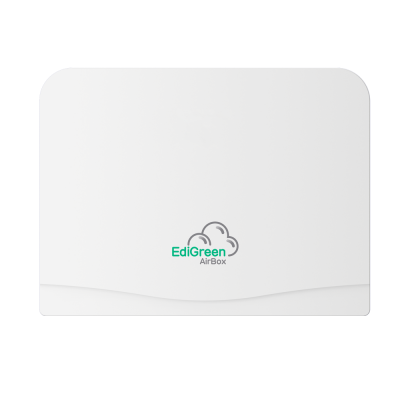

Air Quality Detector with PM2.5, Temperature and Humidity Sensors

  • Accurate monitoring of PM2.5, temperature and humidity, know the air you breathe.
  • Discover quality by providing air quality level history and trends
  • Analyze past readings, observe the present
  • Alerts you when air quality is at health risk levels
  • Knowledge at a glance, check your air quality immediately on EdiGreen app.

Breathe Better, Live Better

Do you know what you’re breathing? Air pollution has received significant national and local attention and has become one of the top concerns across the globe. The composition of PM2.5 is relatively complex, including direct emissions of fine particles of the combustion process (primary PM2.5 particles), and secondary particles generated by multiphase chemical reactions of atmospheric pollutants. Mass manufacturing, heavy industry, burning fossil fuels and the use of agricultural chemicals are contributing to rising levels of harmful PM2.5 particles in the air.

Recent WHO estimates put the annual death toll from air-pollution related conditions at around 7 million people. And the figure is forecasted to keep rising. Recommend average annual PM2.5 levels are around 10 μg/m3, but developing countries often exceed 30 – 40 μg/m3  and an increase of just 5 μg/m3 can increase risk of cardiovascular disease by 55%. According to the WHO, air pollution is the world’s single greatest environmental health risk.

Air Quality Detection with Real-time Data

Accurate real-time automatic monitoring of PM2.5, temperature and humidity, with intuitive displays and real-time air-quality data delivered by the free EdiGreen mobile companion app.

Easy Maintenance

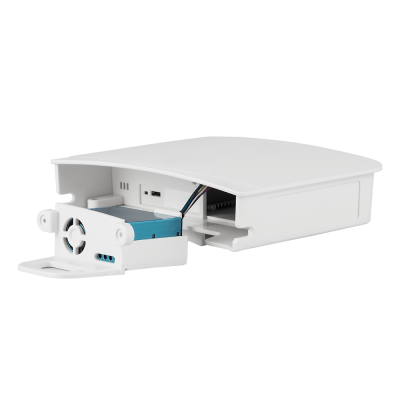

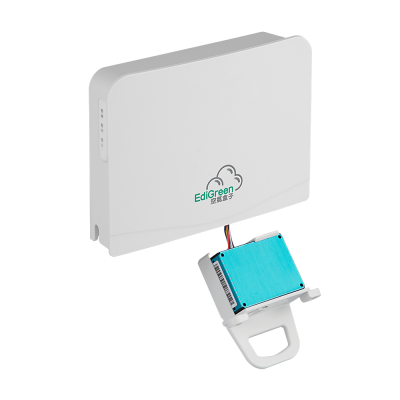

The AI-1001W  adapts a slide-in PM2.5 modular sensor design to help users check and change the sensor on their own.

Air Quality Monitoring

The AI-1001W  works with EdiGreen to provide an air quality monitoring solution which is comprised of emission identification and traceability, and device management support. This solution enables the decision makers to make effective and timely decisions to enforce regulations, and foster environment management operational excellence.

Big Data & Cloud Architecture

The air quality data is collected, processed and analyzed in Edimax’s advanced cloud system. Historical data across different locations are checked to understand trends, identify pollution spots or observe improvements during a period of time, and sourcing up-to-date hyperlocal data from  EdiGreen sensors deployed around your city.
NETWORK
Wi-Fi
IEEE 802.11 b/g/n
Wi-Fi Security
WPA/WPA2
Antenna Type
1 x Internal Antenna
NB-IOT
BAND28 (V4 Only)
NB-IOT Antenna Type
1 x Internal Antenna
FEATURES
Mobile App
EdiGreen
Event Notification
Push Notification
History
Yes
PM2.5 Sensor
0 ~ 500 + μg/m3 ,min. 0.3μm
Humidity Sensor
0 ~ 100%RH, ± 5% RH
Temperature Sensor
0 ~ 60°C ± 1 °C
OTHERS
Power Adapter
Micro USB Power Port x 1,
DC 5V 1A
Operating Temperature
-10°C ~ 60°C  ± 1 °C
Dimensions
150mm(W) x 110 mm(H) x 47mm(D)
Weight
210g
