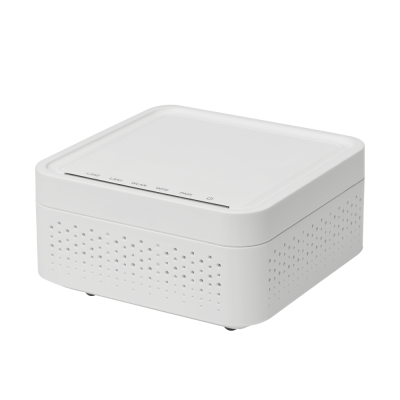

RE-7478MK1

AC1200 Wireless LAN Dual Band Concurrent MU-MIMO Mesh Repeater

  • Support different operation mode: AP and Repeater Mode.
  • Support Multi-user Multiple Input Multiple Output (MU-MIMO).
  • Provide 2 Gigabit Ethernet port
  • Support 64/128-bit WEP, WPA, WPA2 and IEEE 802.1x wireless securities
  • Support Wi-Fi Protected Setup (WPS 2.0) hardware button
  • Support Web-based configuration.

AC1200 Wireless LAN Dual Band Concurrent MU-MIMO Mesh Repeater
Up to 300Mbps 2.4G or 867Mbps 5G
2T2R IEEE802.11a/an/ac + IEEE802.11b/g/n
Product   RE-7478MK1
Main Chipset
Realtek RTL8197FS + RTL8812BRH + RTL8363
Flash + SDRAM
8MB Flash + 64MB DDRAM II (Build-in RTL8197FS)
Ethernet Port
10/100/1000M UTP Port x 2 (Auto MDI/MDI-X) for LAN
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps;
11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
Output Power
2.4GHz:
11b(11M): 18±1.5dBm
11g(54M): 15±1.5dBm
11n(20MHz, MCS7): 14±1.5dBm
11n(40MHz, MCS7): 14±1.5dBm
5GHz:
11a(54M): 16±1.5 dBm
11n(20MHz, MCS7): 15±1.5 dBm
11n(40MHz, MCS7): 15±1.5dBm
11ac(80MHz, VHTMCS9): 12±1.5dBm
Receive Sensitivity
Receive Sensitivity
2.4GHz:
11b(11M): -79±2dBm
11g(54M): -67±2dBm
11n(20MHz, MCS7): -66±2dBm
11n(40MHz, MCS7): -63±2dBm
5GHz:
11a(54M): -67±2dBm
11n(20MHz, MCS7): -67±2dBm
11n(40MHz,MCS7): -65±2dBm
11ac(80MHz,VHTMCS9): -56±2dBm
Antenna
Internal DB Pifa Antenna x 2
Power Adapter
DC 12V, 1A
Dimension
Plastic housing 95(W) x  50(H) x 95(D) mm
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
TBD
