RE-7476RPX

AX1800 Wireless LAN Dual Band Concurrent Repeater

  • Supports STBC, LDPC, TX Beamformer and RX Beamformee
  • Supports OFDMA (TX & RX), MU-MIMO (TX & RX)
  • Support different operation mode: AP, Repeater and Client Mode.
  • Support WPA/WPA2
WiFi 6

​Make Wireless to WiFi6 Super High Speed

This router upgrades your network to 11ax, which operates in both 5GHz and 2.4GHz band. Wi-Fi 6, the 802.11ax, is the mostly compliant Wi-Fi standard for current home wireless networking. With combined  up to 1800Mbps data rate, the device provides better speeds and coverage. You can run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11 a/b/g/n/ac to ensure compatibility with legacy Wi-Fi devices.

Make Wireless to 1024QAM

This router maximum throughput per band is higher to 1024QAM modulation, which allows the wireless signal to carry more information. This upgrade enables speeds up to 25% faster than the 256QAM modulation introduced with 802.11ac.

Easy push button setup by WPS

This router has WPS hardware button for user to easily build connection to router or network device by simply pressing WPS button of both devices.

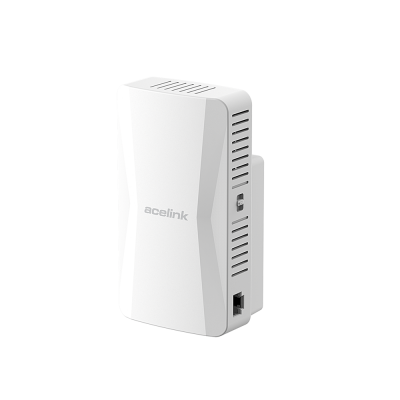

Compact Size and Wall mount type

This repeater is not only designed in compact size but also built in the power module, it allows user to just plug this device to the electrical outlet directly without an additional power adapter.

LED signal indicator

You can place this repeater to the best location by checking its LED signal indicator to secure better wireless performance.

Web Configuration

You can configure this device through the friendly Web user interface with a browser.
Product AX1800 WLAN Dual Band Concurrent Repeater
Chipset
Mediatek MT7621A + MT7915DA
Flash + SDRAM
128MB NAND Flash + 256MB DDRAM3
Ethernet Port
10/100/1000M UTP Port x 1 (Auto MDI/MDI-X)
Frequency Band
2400~2497 MHz (Industrial Scientific Medical Band)
5150~5925 MHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
11ax (40MHz): VHTMCS11, up to 573Mbps
11ax (800MHz): VHTMCS11, up to 1201Mbps
Output Power
2.4GHz:
11b(11M): 16±1.5dBm
11g(54M): 16±1.5dBm
11n(20MHz, MCS7): 16±1.5dBm
11n(40MHz, MCS7): 16±1.5dBm
11ax(HE40MHz, MCS11): 15±1.5dBm
5GHz:
11a(54M): 16±1.5 dBm
11n(20MHz, MCS7): 16±1.5 dBm
11n(40MHz, MCS7): 16±1.5dBm
11ac(80MHz, VHTMCS9): 16±1.5dBm
11ax(HE160MHz, MCS11): 15±1.5dBm
Receiver Sensitivity
2.4GHz:
11b(11M): -85±2dBm
11g(54M): -73±2dBm
11n(20MHz, MCS7): -71±2dBm
11n(40MHz, MCS7): -62±2dBm
11ax(HE40MHz, MCS11): -57±2dBm
5GHz:
11a(54M): -71±2dBm
11n(20MHz, MCS7): -69±2dBm
11n(VHT40MHz,MCS7): -57±2dBm
11ac(VHT80MHz, MCS9): -57±2dBm
11ax(HE160MHz, MCS11): -52±2dBm
Antenna
Internal Antenna x 4 (2.4GHz x 2 and 5GHz x 2)
Power Module
DC 12V, 1A
Dimension
Plastic housing 85(W) x  196(H) x 106(D) mm
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
TBD
