Home WiFi

RE-7438UC

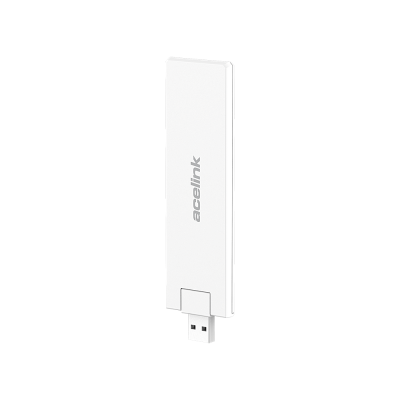

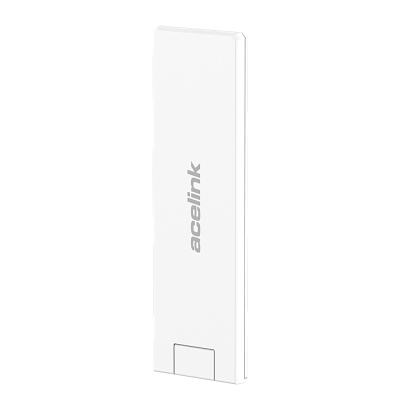

AC1200 Wireless LAN Dual Band Concurrent MU-MIMO Easy Repeater

  • Support DHCP server to assign IP address automatically for first setup.
  • Support Multi-user Multiple Input Multiple Output (MU-MIMO).
  • Provide 1 USB port for DC Power in.
  • Support 64/128-bit WEP, WPA, WPA2 and IEEE 802.1x wireless securities
  • Support Wi-Fi Protected Setup (WPS 2.0) hardware button
  • Support Web-based configuration.

Extend Wireless Range

This repeater is designed with dual-band speeds up to 867Mbps at 5GHz and 300Mbps at 2.4GHz frequency fully complied with IEEE802.11a/b/g/n standards, and also supports the IEEE802.11ac in 5GHz band. IEEE802.11ac is backward compatible with 11n, there is no interoperability problem. It can connect to any b/g/n wireless router then extend wireless coverage and enhance wireless signal at the poor signal or low data rate area of your existing wireless network, allowing more users enjoying  high bandwidth wireless connection without cable burden and any interruption.

Make Wireless to AC High Speed

Utilizing the next generation of Wi-Fi technology 11ac in 5GHz band, it can support up to 867Mbps data rate which is 3 times faster than current 11n device. User will enjoy truly high performance on wireless interface.

Portable Small Size And WiFi Any Where You Need

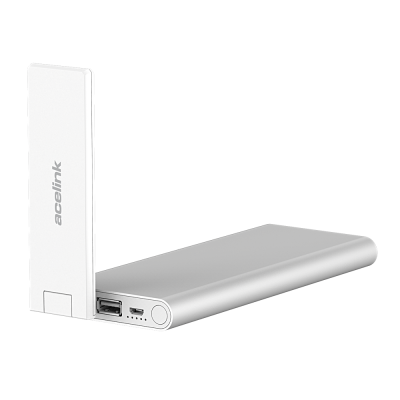

This repeater is not only designed small size but also provide USB connector for 5VDC power-in, it allows user have convenient power options: with an mobile phone power adapter to wall-plug, power bank, or with extension cord to provide the best Wi‑Fi everywhere in your home.

Easy Push Button Setup By WPS

This repeater has WPS hardware button for user to easily build connection to router or network device by simply pressing WPS button of both devices.

LED Signal Indicator

You can place this repeater to the best location by checking its LED signal indicator to secure better wireless performance.

Web Configuration

You can configure this device through the friendly Web user interface with a browser.
Product AC1200 Wireless LAN MU-MIMO Easy Repeater
Chipset
Realtek RTL8197FS + RTL8812BRH
Flash + SDRAM
8MB Flash + 64MB DDRAM II (Build-in RTL8197FS)
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-15, up to 144Mbps
11n (40MHz): MCS0-15, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps
Output Power
2.4GHz:
11b(11M): 16±1.5dBm
11g(54M): 14±1.5dBm
11n(20MHz, MCS7): 13±1.5dBm
11n(40MHz, MCS7): 13±1.5dBm
5GHz:
11a(54M): 12±1.5 dBm
11n(20MHz, MCS7): 10±1.5 dBm
11n(40MHz, MCS7): 10±1.5dBm
11ac(80MHz, VHTMCS9): 7±1.5dBm
Receiver Sensitivity
2.4GHz:
11b(11M): -81±2dBm
11g(54M): -68±2dBm
11n(20MHz, MCS7): -67±2dBm
11n(40MHz, MCS7): -65±2dBm
5GHz:
11a(54M): -68±2dBm
11n(20MHz, MCS7): -68±2dBm
11n(40MHz,MCS7): -67±2dBm
11ac(80MHz,VHTMCS9): -55±2dBm
USB Connector
Power Require DC 5V/1A
Antenna
Internal DB Pifa Antenna x 2
Dimension
Plastic housing 35(W) x  115(H) x 9.5(D) mm
(USB connector for DC power-in is excluded)
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
FCC, CE
