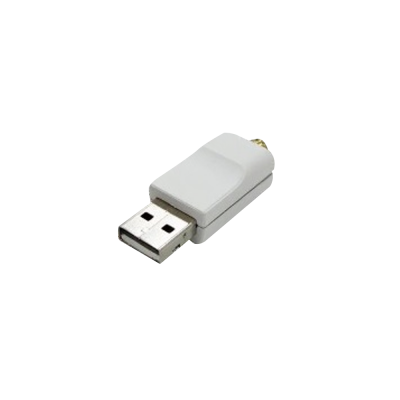

EW-7811USC

IEEE802.11a/b/g/n/ac 1T1R Dual-Band Selectable USB Adapter

  • Comply with IEEE 802.11a/b/g/n standards and IEEE802.11ac draft
  • Supports dual band frequency- 2.4GHz / 5GHz
  • Very high transfer data rate – up to 150Mbps (2.4GHz) or up to 433Mbps (5GHz).
  • Supports WMM wireless QoS feature.
  • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security.
  • Support the most popular operating system: Windows 8, Windows 7, Windows XP,
  • Linux, MAC OS.
  • Supports WPS (WiFi Protected Setup) hardware button for easy connection.
Inquiry

11ac Wireless Dual-Band USB Adapter
Dual Band, up to 11n 150Mbps or 11ac 433Mbps
IEEE 802.11a/b/g/n/ac, 1T1R
Product   EW-7811USC
Main Chipset
Realtek RTL8811AU
Bus Type
USB 2.0 Type A
Frequency Band
2.4000~2.4835GHz  (subject to local regulations)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 72Mbps
11n (40MHz): MCS0-07, up to 144Mbps
11ac (80MHz): VHTMCS0-9, up to 433Mbps
Output Power
2.4GHz:
11b(11M): 16±1.5 dBm
11g(54M): 14±1.5 dBm
11n(20MHz, MCS7): 14±1.5 dBm
11n(40MHz, MCS7): 14±1.5 dBm
5GHz:
11a(54M): 12±1.5 dBm,
11n(20MHz, MCS7): 12±1.5 dBm
11n(40MHz, MCS7): 12±1.5 dBm
11ac(80MHz, VHTMCS9): 10±1.5 dBm
Receive Sensitivity
2.4GHz:
11b(11M): -86±2dBm
11g(54M): -72±2dBm
11n(20MHz, MCS7): -69±2dBm
11n(40MHz, MCS7): -67±2dBm
5GHz:
11a(54M): -72±2dBm
11n(20MHz, MCS7): -70±2dBm
11n(40MHz, MCS7): -66±2dBm
11ac(80MHz, VHTMCS9): -54±2dBm
Antenna
External Detachable 3dBi Dipole Antennas x 1 (1T1R)
Drivers
Windows 8/7/XP, Linux , MAC OS
LED
Link/Act/WPS
Dimension
12(H) x 16(W) x 50(D) mm (With Protection Cap and R-SMA)
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
FCC, CE
