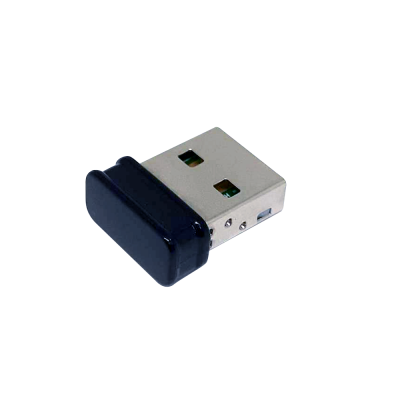

EW-7811GLN V2.0A

N150 Wireless LAN USB Adapter

  • Comply with IEEE 802.11b/g/n standards.
  • High transfer data rate  – up to 150Mbps.
  • Supports 64/128-bit WEP, WPA, WPA2, WPA3.
  • Supports IEEE 802.1x functions for high level of security.
  • Support the most popular operating system: Windows 10, Linux and MAC OS.
  • Supports USB 2.0/1.1 interface.
  • Supports 802.11e WMM wireless QoS feature.
  • Supports power saving mechanism.
  • Ultra-Nano size design.
Inquiry

Ultra-Nano Size, up to 150Mbps
IEEE 802.11b/g/n, 1T1R, Super Nano Size
Product N150 Wireless LAN USB Adapter
Chipset Solution
Realtek RTL8188EUS
Standard
IEEE 802.11b/g/n
Bus Type
USB 2.0 Type A
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
Data Rate
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-7, up to 72Mbps
11n (40MHz): MCS0-7, up to 150Mbps
Output Power
11b@11Mbps: 16±1.5dBm
11g@54Mbps: 14±1.5dBm
11n(20MHz)@MCS7: 13±1.5dBm
11n(40MHz)@MCS7: 13±1.5dBm
Receive Sensitivity
11b@11Mbps: -82±2dBm
11g@54Mbps: -70±2dBm
11n(20MHz)@MCS7: -67±2dBm
11n(40MHz)@MCS7: -64±2dBm
Security
WEP 64/128, WPA, WPA2, WPA3 and IEEE 802.1x
Antenna
Internal PiFa Antennas x 1 (1T1R)
Drivers
Windows 10, Linux and MAC OS
LED
Link/Activity
Dimension
7.1(H) x 14.9(W) x 17.4(D) mm
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing),
Storage: Max. 95% (NonCondensing)
Certification
TBD
