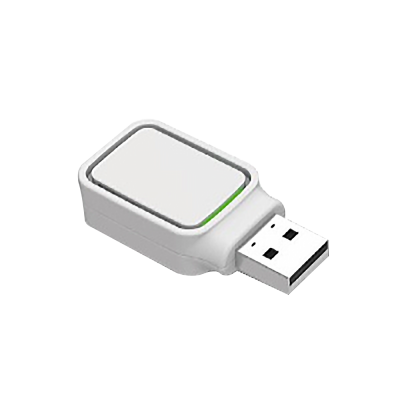

EW-7611UCB

IEEE802.11a/b/g/n/ac 1T1R USB Adapter,Bluetooth 4.0

This USB adapter is a highly integrate solution to 802.11ac with Bluetooth 2.1 / 3.0 / 4.0 and with ultra-thumb size. It provides good coordination to good coexistence performance between 802.11 and Bluetooth.
Inquiry

11ac Wireless LAN with Bluetooth USB Adapter
Thumb Size, up to 11ac 433Mbps, Bluetooth 4.0
IEEE 802.11a/an/ac, 1T1R
This USB adapter is a highly integrate solution to 802.11ac with Bluetooth 2.1 / 3.0 / 4.0 and with ultra-thumb size.
It provides good coordination to good coexistence performance between 802.11 and Bluetooth
Product   EW-7611UCB
Main Chipset
Realtek RTL8821AU
Bus Type
USB 2.0 Type A
Frequency Band
2.4000~2.4835GHz (Industrial Scientific Medical Band)
5.150~5.825GHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 72Mbps
11n (40MHz): MCS0-07, up to 150Mbps
11ac (80MHz): VHTMCS0-9, up to 433Mbps
Output Power
2.4GHz:
11b(11M): 16±1.5 dBm
11g(54M): 14±1.5 dBm
11n(20MHz, MCS7): 13±1.5 dBm
11n(40MHz, MCS7): 13±1.5 dBm
5GHz:
11a(54M): 13±1.5 dBm
11n(20MHz, MCS7): 12±1.5 dBm
11n(40MHz, MCS7): 12±1.5 dBm
11ac(80MHz, VHTMCS9): 11±1.5 dBm
Receive Sensitivity
2.4GHz:
11b(11M): -81±2dBm
11g(54M): -68±2dBm
11n(20MHz, MCS7): -66±2dBm
11n(40MHz, MCS7): -65±2dBm
5GHz:
11a(54M): -68±2dBm
11n(20MHz, MCS7): -65±2dBm
11n(40MHz, MCS7): -62±2dBm
11ac(80MHz, VHTMCS9): -52±2dBm
Bluetooth
Class 1 radio, supports BT v4.0/ 3.0/ 2.1
Security
WEP 64/128, WPA, WPA2 and IEEE 802.1x
Antenna
Internal PiFa antennas x 2 (1T1R)
Drivers
Windows 7/8/10, Linux
LED
Link/Act/WPS
Dimension
11.5(H) x 24(W) x 51(D) mm
Temperature
Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C)
Humidity
Operating: 0~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
CE
