Home WiFi

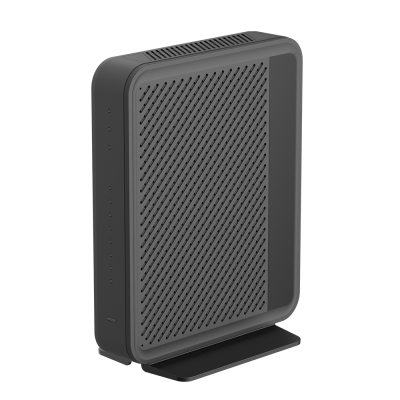

BR-6873AX

AX6000 Wireless LAN Dual Band Concurrent Router

Up to 1200Mps in 2.4GHz and 4800Mbps in 5GHz 4T4R IEEE802.11a/b/g/n/an/ac /ax, MU-MIMO, OFDMA
  • Supports 4x4 both at 2.4GHz and 5GHz with Beamforming.
  • Supports OFDMA (DL & UL), DL Mu-MIMO
  • Support different operation mode: Router and AP Mode.
  • Support WPA/WPA2/WPA3
  • Support Wi-Fi Protected Setup (WPS 2.0) hardware button
  • Support Web-based configuration.
WiFi 6

​Make Wireless to WiFi6 Super High Speed

This router upgrades your network to 11ax, which operates in both 5GHz and 2.4GHz band. Wi-Fi 6, the 802.11ax, is the mostly compliant Wi-Fi standard for current home wireless networking. With combined  up to 6000Mbps data rate, the device provides better speeds and coverage. You can run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11 a/b/g/n/ac to ensure compatibility with legacy Wi-Fi devices.

Make Wireless To 1024QAM

This router maximum throughput per band is higher to 1024QAM modulation, which allows the wireless signal to carry more information. This upgrade enables speeds up to 25% faster than the 256QAM modulation introduced with 802.11ac.

Easy Push Button Setup By WPS

This router has WPS hardware button for user to easily build connection to router or network device by simply pressing WPS button of both devices.

2 Modes in 1 | All With A Switch

Easily selectable modes between Wi-Fi router and the access point for different network situations.

Web Configuration

You can configure this device through the friendly Web user interface with a browser.
Product AX6000 WLAN Dual Band Concurrent Router
Chipset
Intel GRX550 + WAV614 + WAV624
Flash + SDRAM
128MB NAND Flash + 256MB DDRAM3
Ethernet Port
10/100/1000M UTP Port x 5 (Auto MDI/MDI-X)
Frequency Band
2412~2484 MHz (Industrial Scientific Medical Band)
5150~5950 MHz (subject to local regulations)
Data Rate
11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (40MHz): MCS0-15, up to 600Mbps
11ac (80MHz): VHTMCS0-9, up to 1733Mbps
11ac (160MHz): VHTMCS0-9, up to 3467Mbps
11ax (160MHz): VHTMCS11, up to 4800Mbps
Output Power
2.4GHz:
11b(11M): 15±1.5dBm
11g(54M): 15±1.5dBm
11n(20MHz, MCS7): 14±1.5dBm
11n(40MHz, MCS7): 14±1.5dBm
11ax(HE40MHz, MCS11): 14±1.5dBm
5GHz:
11a(54M): 15±1.5 dBm
11n(20MHz, MCS7): 14±1.5 dBm
11n(40MHz, MCS7): 14±1.5dBm
11ac(80MHz, VHTMCS9): 13±1.5dBm
11ax(HE160MHz, MCS11): 11±1.5dBm
Receiver Sensitivity
2.4GHz:
11b(11M): -86±2dBm
11g(54M): -72±2dBm
11n(20MHz, MCS7): -70±2dBm
11n(40MHz, MCS7): -67±2dBm
11ax(HE40MHz, MCS11): -57±2dBm
5GHz:
11a(54M): -71±2dBm
11n(20MHz, MCS7): -70±2dBm
11n(VHT40MHz,MCS9): -63±2dBm
11ac(VHT80MHz, MCS9): -60±2dBm
11ax(HE160MHz, MCS11): -51±2dBm
Antenna
Internal Antenna x 8 (2.4GHz x 4 and 5GHz x 4)
Power Adapter
DC 12V, 2.5A
Dimension
Plastic housing 88(W) x  206(H) x 166(D) mm
Temperature
Operating: 32~104°F (0~40°C), Storage: -4~140°F (-20~60°C)
Humidity
Operating: 10~90% (NonCondensing)
Storage: Max. 95% (NonCondensing)
Certification
TBD
