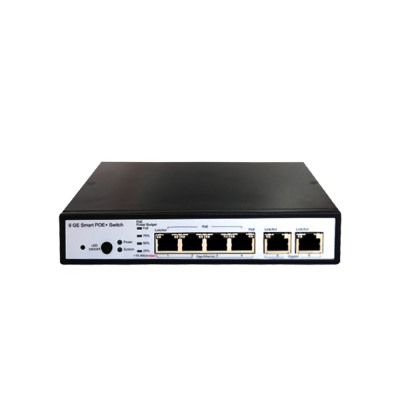

Enterprise Switch

SW-WG1306TE

4 port 10/100/1000base-T PoE +2 port 10/100/1000base-T

  • 6x100/1000 Base-T Ports (with 4 PoE ports, 5th-6th GE port without PoE function)
  • Port LED indicators
  • System LED indicator
  • PoE system power budget LED indicators
  • DC Inlet (4-Pin Power Din Type)
  • Push button can do LED Intensity control, excluding Power LED.
  • Factory Default button to back system configuration to default
  • RJ-45 Console port (Cisco Type) in real panel

Inquiry

SW-WG1306TE is the advanced 4-port 10/100/1000 base-T +2-Port GE switch which had been built-in PoE controller to support 4 PoE ports. This model is target to supply PoE power for IP cameras, Access Points . However, it is able to supply 30W per each port if the total power budgets of PoE devices are under 80W.
​
Product SW-WG1306TE
Switch Controller
VSC7424 (with 8 Port integrated Phy)
CPU
Embedded MIPs 416MHZ
Flash Memory
SPI Flash 128Mbit (16Mbyte)
SDRAM
DDR-II 1 Gigabit (128Mbyte)
PoE Chip
Module Design -- Microsemi PD69104B
FAN
Fanless
