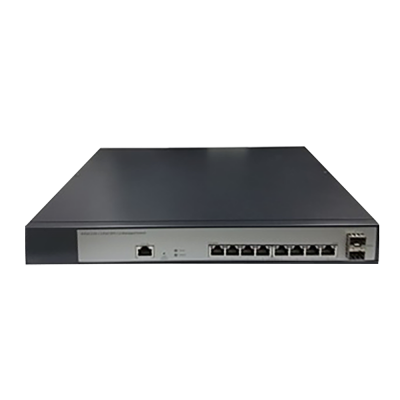

SW-MG1310FP
8 100/1000/2500 Base-T Port + 2 SFP+ (10G)
- 100/1000/2500Base-T Ports (w/ PoE ) *2 SFP Cadge Ports
- Port LED indicators
- System LED indicator
- PoE system power budget LED indicators
- DC Inlet (4-Pin Power Din Type)
- Push button can do LED Intensity control, excluding Power LED.
- Factory Default button to back system configuration to default
- RJ-45 Console port (Cisco Type) in real panel
SW-MG1310FP is the advanced 8-port 100/1000/2500 base-T +2-Port SFP+ Web smart switch which had been built-in PoE controller to support 8 PoE ports. This model is target to supply PoE power for supporting 2.5G wired SMB grade Access Points . However, it is able to supply 30W per each port and full power for 8 port 30w. The total power budgets of PoE devices are under 240W.
SW-MG1310F is the advanced 8-port 10/100/1000/2500 base-T +2-Port SFP+ Web smart switch. This model is target to support 2.5G wired SMB grade Access Points and all 2.5G wired devices. Hardware Features.
SW-MG1310F is the advanced 8-port 10/100/1000/2500 base-T +2-Port SFP+ Web smart switch. This model is target to support 2.5G wired SMB grade Access Points and all 2.5G wired devices. Hardware Features.
Product SW- MG1310FP
- Switch Controller
- VSC7444
- CPU
- Embedded 500 MHz MIPS 24KEc
- 2.5G GE PHy
- Aquantia AQR412 x 2
- Flash Memory
- SPI Flash 256Mbit (32Mbyte)
- SDRAM
- DDR-III 1 Gigabit (128Mbyte)
- PoE Chip
- Module Design -- Microsemi PD69200 + PD69208
- FAN
- Hot Swappable Smart Fan
