SMAX - Your best choice for surveillance - Enterprise Switch - PG18BA

Enterprise Switch

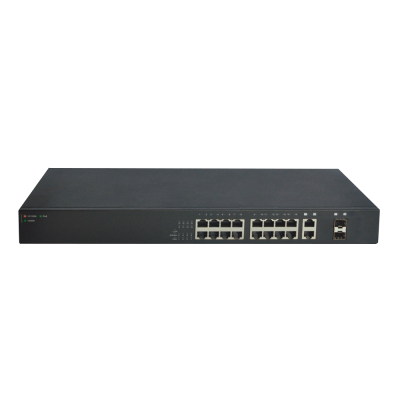

PG18BA

16port 10/100/1000base-T PoE + 2port 10/100/1000base-T combo

  • 16 GE ports + 2 GE combo ports w/ 16 PoE ports
  • Switch: Realtek RTL8382L+RTL8218B+ RTL8214FC
  • PoE: Microsemi PD69200 + PD69208
  • IEEE 802.3 af/at
  • 400W (Max)Internal Power Adapter
  • PoE Budge: 350W
  • Dimension: 19”, 441*196*44 mm

Inquiry

PG18BA is the advanced fan-less Power-Over-Ethernet Switch supports  16 Gigabit Ethernet ports (PoEx16) ; specifically designed for connecting to IP Camera, WiFi Access Point …devices. PG18BA supplies 350Walt power budget for POE function. Under the power budget, each port (PSE) can support up to 30Walt power which is compliant with IEEE802.3at standard.
Product   PG18BA
Switch Controller
Realtek RTL8382L+RTL8218B + RTL8214FC
PoE
Microsemi PD69200 + PD69208
FAN
Fanless
