Carrier

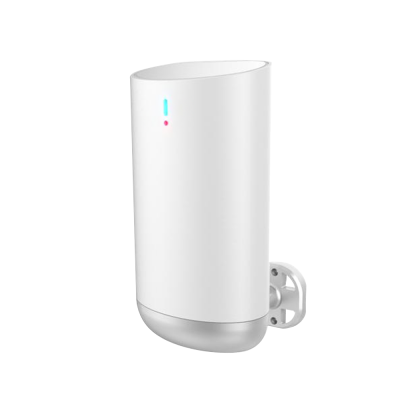

EW-7079O5G

IP-55 Weather Proof 5G NR CPE

  • Outdoor 5G NR CPE
  • IP-55 Weather Proof Housing
  • 1 x 5 Gigabit PoE port
  • Qualcomm SDX55 architecture
  • 1 BLE radio for configuration
  • Pole Mount or Wall mount
  • Support Sub-6G and Millimeter Wave

Solution for 5G to the home/Building

AceLink’s outdoor 5G-NR CPE is the most advanced solution for bringing broadband through 5G to the building or to the home.  Featuring a stylish weather proof design and powerful antennas, it is the best available solution for telecom providers.

Overcome the 5G Distance Limitation

5G NR offer great bandwidth at the cost of coverage distance.  Therefore, you need the outdoor solution to bring the 5G signal into your home.  The AceLink EW-7079O5G offer 6 sub-6G and 3 millimeter wave antennas to offer far better signal than an indoor router or smart phone can offer.  There is no doubt that a 5G NR outdoor CPE is required for maximum benefit from a 5G NR link.

Qualcomm Solution

The EW-7079O5G is based on Qualcomm architecture for best compatibility.  It can work in sub-6G or millimeter-wave band.  With the 5-Gigabit Ethernet PoE port, it means you can operate the device at the full 5G NR speed.

Bluetooth support

The EW-7079O5G has a BLE radio built-in for direct configuration through Bluetooth.  It makes instant setup with a smart phone APP much easier.
Product   EW-7079O5G
CPU
Qualcomm SDX55 LGA
CPU Frequency 1.5G
Number of CPU Cores 4cores
SDRAM (MB/GB) 512M
Internal storage (MB/GB) 512MB
OS version Linux 4.14
Multi-Giga PHY
1x  5GE PCI-E Controller AQC111C
BLE
TI  CC2650 (for configuration)
Antenna
8 x 3G/LTE/5G antenna(Sub-6G)
3 x 28G mmWave Antenna
1x BLE antenna
Ethernet Port
1 x 100/1G/2.5G/5Gbps BASE-T Ethernet (RJ45)
1x SIM slot (push push)
LED
Stats LED: 1x tri-color (Green / orange/ Red)
Signal bar: 4xLED (green)
                   1x 5G mmWave (green)
                   1x 5G sub-6G (green)
                   1x LTE  (Green)
Miscellaneous
1 x Reset Button (Reset / Reset to Factory Default)
1x push push mini SIM slot
PCB dimension
80*150*1.6mm/6L
Enclosure Dimesion
237.3x126.8x143.5mm (with bracket)
Surge
+-6KV
Operating Temperature
-10 ~ 50 degree C (TBD, without heater)
Power Supply
IEEE 802.3at PD
